1996 Corvette guide: the last C4, LT1 or LT4, the Grand Sport and the Collector Edition

GM’s list of what was new for 1996 is short, and all of it matters:

• The LT4, a 330 hp version of the small-block, six-speed only, with an 8,000 rpm tachometer face to go with it.
• OBD II, the second generation of on-board diagnostics, “a new standard feature on every 1996 Chevrolet” (page 25), and the standard later cars still use.
• Selective Real Time Damping (GM option code, or RPO, F45): sensors at each wheel and shocks adjusted in 10 to 15 milliseconds, replacing the 1995’s FX3 Selective Ride Control (page 28).
• The Z51 Performance Handling Package, coupe only, which GM’s book aims at “the Gymkhana/AutoCross enthusiast.”
• The Collector Edition (Z15) and the Grand Sport (Z16). GM’s heritage page says both “mark the end of the current style.”

Carried over from 1995. The heavy-duty brakes with 13 in front rotors and dual-piston calipers stayed standard (page 27), the angled gill panels behind the front wheels stayed with no change GM mentions, and so did the two-airbag cabin and the electronically controlled 4L60-E automatic.

Gone for 1996. The ZR-1 ended with 1995, so there is no 1996 ZR-1, whatever a listing says (the C4 ZR-1 guide has its story). FX3, the 1995’s Z07 handling package and the one-year 1995 Indianapolis pace car replica went too, and so did the LT1 with three pedals. GM’s 1995 order guide offered the six-speed at no charge with the LT1 (1995 kit, page 23); the 1996 guide marks it “N/A LT1 Eng.”

What came next. The 1997 C5 (1997–2004) was all new and launched in “one body style: Corvette Coupe,” and GM’s launch book sold its LS1 as having more horsepower and torque “than the optional ‘96 LT4”. The C5 guide starts there.

Was 1996 a good year for the Corvette? For a C4, the best by most owners’ reckoning, alongside 1995: the big brakes, the vented Opti-Spark and, for 1996 only, the strongest small-block the C4 ever got. The catch is age: at 30 years old, the car’s own history counts for more than its model year.

For 1996 the order guide ties each engine to one transmission, on both the coupe page and the convertible page: the LT1 “Reqs MX0 Trans,” the four-speed automatic; the LT4 “Reqs MN6 Trans,” the ZF six-speed; and the six-speed is “N/A LT1 Eng.” Corvette Action Center counts 6,359 LT4s and 6,359 six-speeds, so every 1996 stick car is an LT4 and the other 15,177 are LT1 automatics, by this site’s arithmetic. A 1996 LT1 with a six-speed has had its drivetrain changed.

One undated GM sheet in the same kit, the MVMA power-team page, lists an LT1 six-speed and rates the LT1 at 340 lb-ft. The January 1996 order guide and GM’s spec pages contradict it; don’t let a seller quote it.

How much horsepower does a 1996 Corvette have? GM’s ratings:

GM rated the 1995 LT1 at 340 lb-ft (the C4 guide’s specs table has both years). Its 1996 papers disagree on the rpm of the 335 lb-ft peak (4,000 in the product book, 3,600 on a September 1995 GM spec sheet that Corvette Action Center reprints), so the table leaves it out.

What the LT4’s $1,450 bought. Larger intake and exhaust valves, revised pistons for the higher compression, high-capacity injectors, roller rocker arms and a roller timing chain, plus a red intake manifold and red plug and coil wires (page 26). Car and Driver adds a more aggressive camshaft and higher-flow aluminum heads; the Grand Sport Registry, an owners’ group, gives the valves as 2.00 and 1.55 in (LT1: 1.94 and 1.50) and the rockers as 1.6:1 (LT1: stamped 1.5:1). It’s still an LT1 at heart, Opti-Spark and all.

The gearboxes. The automatic runs 3.06, 1.63, 1.00 and 0.70. The six-speed runs 2.64, 1.78, 1.30, 1.00, 0.74 and 0.49 on GM’s spec table (its transmission page prints the older 2.68 first gear). The six-speed carries GM’s ONE TO FOUR lockout: with the coolant above about 120 °F, at 15 to 19 mph and 21 percent throttle or less, the lever goes from first straight to fourth, for “the best possible fuel economy,” says the owner’s manual. Car and Driver’s first drive (opens in new tab) called it an “annoying” skip-shift there to raise the EPA rating. It’s normal, not a fault.

Fuel and oil. The LT4 needs premium, 91 octane or higher; the LT1 takes 91 “for best performance,” and middle or regular grade at the cost of acceleration (page 234). Both left the factory on Mobil 1 synthetic, and GM calls for 5W-30 meeting its GM4718M standard, 4.5 qt with a filter change (owner’s manual, page 244 and page 307). The filter is a PF52, GM 25010908 (OEM).

How fast is a 1996 Corvette? GM’s kit gives no times. Car and Driver’s January 1996 test of a Grand Sport coupe, as Corvette Action Center records it, ran 0–60 mph in 5.1 s and the quarter mile in 13.7 s at 104 mph, with a 168 mph top speed; Road & Track’s February 1996 test ran 5.2 s and 13.7 s at 105.1 mph. Car and Driver found the Grand Sport coupe’s only gain over a regular six-speed car to be its wider tires, so read those as LT4 numbers. EPA’s current ratings are 15 mpg city and 23 highway for the automatic, 15 and 24 for the six-speed.

Which one? At the same price and condition, owners pick the LT4 (CorvetteForum, 2019–2024). Owners who plan to build an engine call the LT1 the cheaper base, and one notes that LT4-only parts, such as the engine computer’s knock module, are harder to find (CorvetteForum, 2019 and 2022). Car and Driver reported that 80 percent of Corvettes sold were automatics; for 1996 it was about 70 percent, 15,177 of 21,536.

Both packages required the top equipment group (1SB on the coupe, 1SD on the convertible, $1,333 for electronic air conditioning, the Delco-Bose cassette and a power driver seat) and came with perforated leather sport seats embroidered with the package’s name.

Both had black brake calipers with raised “Corvette” lettering. Prices are from GM’s order guide, the contents from GM’s lineup page, the counts from Corvette Action Center.

The Grand Sport. GM’s book says it “evokes the heritage” of the 1960s Corvette road racers, the five 1963 Grand Sports (the generations guide has that story). The coupe’s 17 x 11 in rear wheels, 315/35 tires and flares are the real difference; the convertible ran a regular car’s sizes. The order guide shut out the hardtop, the dual roof package, the transparent roof panels and, on the coupe, run-flat tires. The wheels are the 1994–1995 ZR-1’s five-spoke design painted black, Corvette Action Center’s Grand Sport page (opens in new tab) says, and its counts go deeper: 593 coupes with Black interiors and 217 with Torch Red and Black; 137 and 53 convertibles. By suspension, 237 coupes ran the base setup, 297 the F45 and 276 the Z51. The Grand Sport Registry says 976 stayed in the US, 13 went to Canada and 11 to Europe.

Is there a 1996 Grand Sport convertible? Yes, 190, every one with a white top.

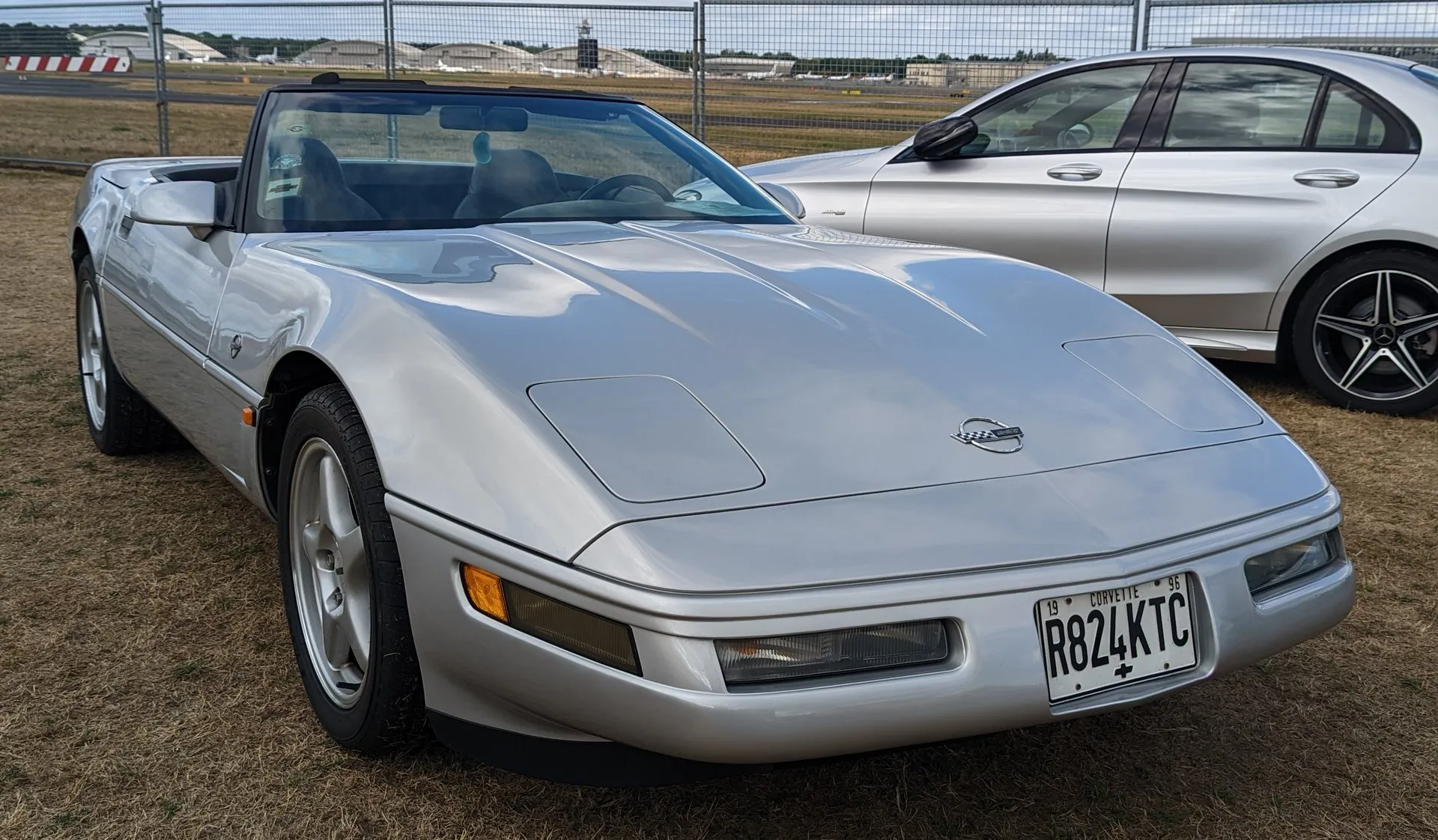

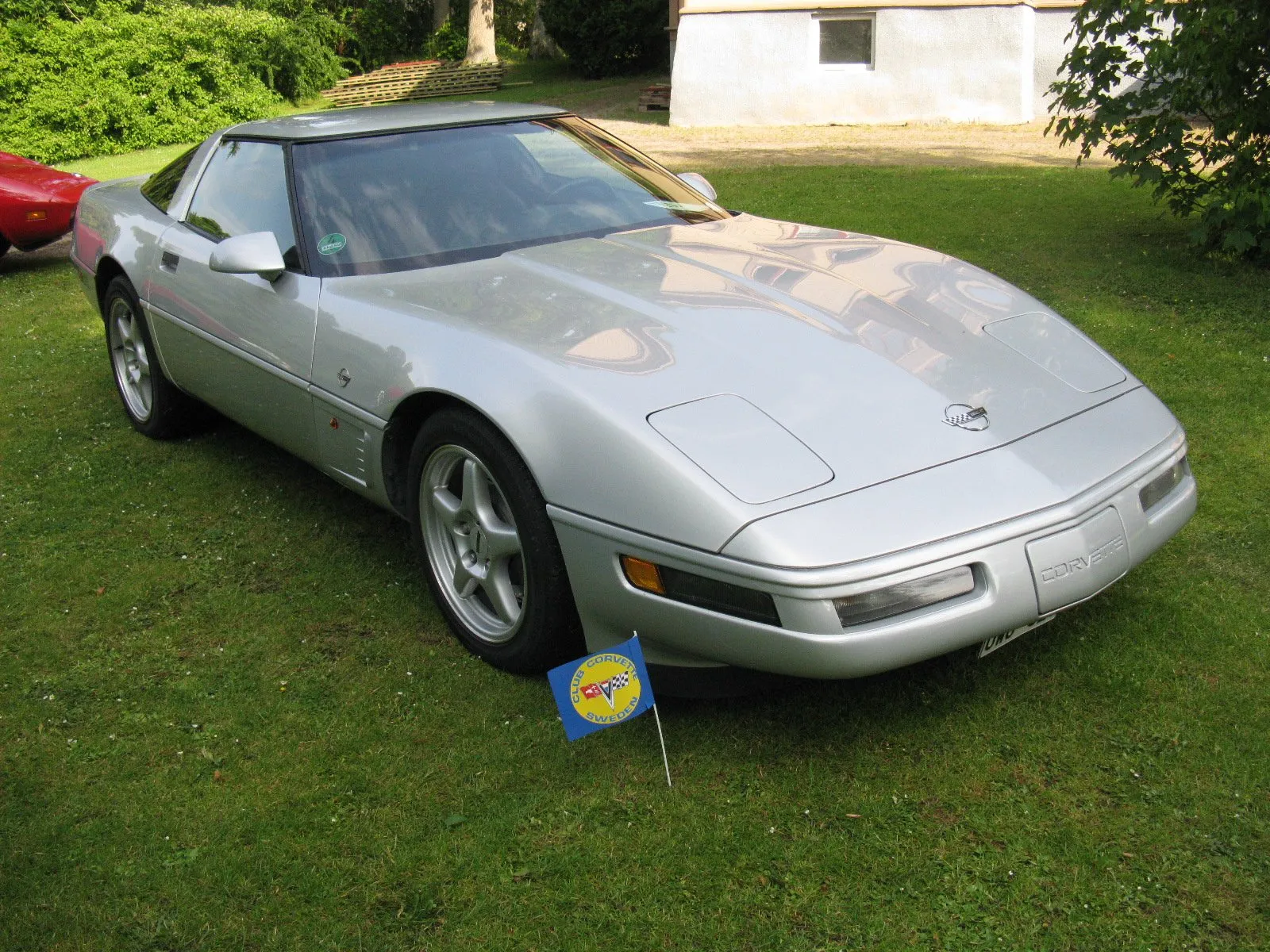

The Collector Edition. GM says it “celebrates the final year of production for the fourth-generation Corvette.” It cost less than half a Grand Sport, came with either engine and outsold it more than five to one: by CAC’s split, 2,009 had the LT4 (1,540 coupes, 469 convertibles) and 3,403 the LT1. Sebring Silver was a Collector Edition color only, so a silver 1996 without Z15 on its label has been repainted.

Chevrolet’s order guide, revised January 29, 1996, prices everything with the $565 destination charge included; Corvette Action Center and Hagerty print the bases without it, $37,225 and $45,060. The options that matter, with CAC’s production counts (opens in new tab):

The Z51 brought Bilstein shocks, stiffer springs, stabilizer bars and bushings, and P275/40ZR17 tires on 17 x 9.5 in wheels at all four corners; with the automatic it needed G92. The run-flats required the pressure warning, and GM rates them at up to 200 miles at 55 mph after losing all their air.

1996 Corvette colors. Nine, by CAC’s count:

GM’s own papers disagree on the regular colors. The product book’s color page lists seven, Bright Aqua, Dark Purple and Competition Yellow among them; the January 29, 1996 order guide’s paint page lists only Black, Polo Green, Torch Red and Arctic White. The small counts fit colors dropped during the year, but no GM paper found says so. Admiral Blue had been a regular 1995 color, so blue paint alone doesn’t make a Grand Sport.

1996 Corvette interior. All leather: Black, Light Beige, Light Gray or Torch Red on base cars, with standard or AQ9 sport seats (the special editions’ choices are in the table in Grand Sport and Collector Edition). The dash mixes the digital speedometer and analog gauges the C4 got in 1990, and its readouts include oil temperature, voltage and, on automatics, transmission fluid temperature. Convertible tops came in black, white or beige.

1996 Corvette specs, the rest. A 96.2 in wheelbase, 178.5 in long and 46.3 in high (47.3 in for the convertible), a 20-gallon tank, and P255/45ZR17 front and P285/40ZR17 rear Goodyear Eagle GS-C tires on 17 x 8.5 in and 17 x 9.5 in wheels. GM estimates the curb weight at 3,298 lb for the coupe and 3,360 lb for the convertible. The battery is a Delco 75B-72 (OEM), behind the driver-side front wheel (the battery guide shows where).

The throttle body proves an LT4, nothing more. One owner whose manual cover, insurance and registration all said “Grand Sport” asked whether every 1996 was one; owners answered that neither the paperwork nor the plate decides it (CorvetteForum, 2016 (opens in new tab)). The VIN does.

Reading a 1996 VIN. From GM’s service manual chart, with serial ranges from Corvette Action Center:

The quick test, from the Grand Sport Registry (opens in new tab): a Grand Sport’s 12th character is 6, and a regular 1996’s is 1. Some references print the range as one full VIN with a fixed 9th character, which can’t fit every car: check the 8th character (5), the 10th to 12th (“T56”) and the serial instead. A Grand Sport convertible starts 1G1YY3, not 1G1YY2.

The stamps that back it up. The last five digits of the serial are stamped into the front sill (tie bar), a VIN stamp sits on the front of the coupe’s roof panel frame, and the engine carries a partial VIN: 1, T, 5 and the six-digit serial. CAC gives the engine suffix codes as ZXA for the LT1 and ZXD for the LT4.

The option label. GM’s Service Parts Identification label lists every RPO code on the car. It’s the proof for Z15, Z16, LT4, Z51 and F45, with the window sticker or build sheet next best.

Paint, wheels and badges come second. Nearly everything in the table in Grand Sport and Collector Edition bolts or sprays on, and owners note that lookalike Grand Sport stripes are often the wrong size (CorvetteForum, 2022). A Grand Sport needs the 600001 to 601000 serial, Z16 on the label and, on a coupe, the flares and 315/35 rear tires; a Collector Edition needs Z15 on the label and the 13U paint code.

A 1996 or a 1995? The gills match, and GM’s 1996 kit names no change to them, so the 10th VIN character decides: T for 1996, S for 1995.

Recalls. No GM safety recall covers a 1996 Corvette. NHTSA’s recall search (opens in new tab) returns one item, 06E043000, Honeywell’s recall of certain aftermarket FRAM G3727 fuel filters, which matters only if one was fitted. The 1997 C5 that replaced it returns five GM recalls.

Bulletins (NHTSA’s index, summaries only; 30 list a 1996 Corvette):

• 01778: the one 1996-only item, a procedure for a central control module that won’t program.
• 87-65-27 (1998): engine miss or poor driveability on 1992–1996 cars, which Engine Builder ties to an Opti-Spark upgrade kit.
• 57-71-26 (1997): 1995–1996 automatics leaking fluid from the pump body; a new bushing.
• 97-09-01-32-02B (1997): a snap or click from the steering column when turning, 1994–1996.
• 05-03-10-019 (2005): the special servicing run-flat tires need, 1994–2006.
• GM-wide 4L60-E bulletins, such as 01-07-30-023 for a harsh 1-2 upshift with code P1870, list the 1996 Corvette alongside GM trucks: gearbox-family items, not Corvette faults.

No GM special coverage (extended warranty) program for a 1996 appears in any NHTSA file.

What are the common problems with a 1996 Corvette? NHTSA holds 44 complaints (opens in new tab) against the 1996, filed from 1996 to 2016, which is 2.0 per 1,000 built. By this site’s reading (some cover two things):

• Tires and run-flat sensors, 7. Four, from 1999–2001, say the wheel sensors for the run-flat warning were discontinued; two describe tread separations; one, snap-in valve stems.
• Transmissions, 6. Forced or skipped shifts (three of the four on LT4 six-speeds by VIN, one reading like the 1-to-4 lockout), an automatic that failed in second, and a six-speed and clutch that failed.
• Fires, 4, from an electrical short, an underhood fire in a garage, a stuck starter and one with no cause found. No pattern, no recall.
• Roof and body flex, 4. Shake with the roof panel or hardtop off, and two 2009 reports of roof panels separating from their frames.
• Power steering, 4. Lost assist in slow turns, and one distributor failure that stalled the engine: the file’s only Opti-Spark complaint.
• Brakes, 2, plus single complaints such as an airbag that didn’t deploy, a cracked seat frame and a hatch that released while driving.

The LT4’s share of complaints with a readable VIN (12 of 35) is close to its share of production, so the file doesn’t single out either engine. These are owner reports, not findings.

The generation-wide list. The Opti-Spark and water pump, weatherstrips, headlight motors, cold-morning steering and PASS-Key no-starts are C4 problems, not 1996 ones, and Known C4 problems in the C4 guide covers each. Vented isn’t immune: one 1996 owner there went through four Opti-Sparks.

OBD II. Owners agree the 1996 is full OBD II and disagree on scan tools: some say a generic reader wouldn’t connect, others used a cheap Bluetooth one (CorvetteForum, 2016). A flashing SERVICE ENGINE SOON light means a misfire, a steady one an emissions fault (owner’s manual, page 129). Owners say a 1995 may be exempt from emissions tests where a 1996 isn’t; check local rules. On LT1 cars, owners trace the evaporative code P1441 to the gas cap, refueling with the engine running or, most often in one owner’s view, the purge solenoid on the right of the intake, ACDelco 214565 (OEM) (CorvetteForum, 2003–2010).

1. VIN, label and ad. The 8th character, the 12th and the label must match the car being sold: 5 and LT4 for an LT4, 6 and Z16 for a Grand Sport, Z15 for a Collector Edition. A six-speed with a P in 8th place has been swapped.
2. The front of the engine. Coolant at the water pump, and records of pump and Opti-Spark work. Misfires or stalls point to the distributor.
3. A cold start, then the steering in a slow, tight turn: lost assist is a theme in the complaint file.
4. The warning lights. SERVICE ENGINE SOON should come on with the key and go out; then plug in a scanner for stored codes, P1441 included.
5. The six-speed. Every gear clean, reverse included, and the ONE TO FOUR light and lockout working as the manual describes. A slipping clutch is a bill.
6. The automatic. Smooth shifts, no fluid at the pump area (57-71-26), and a working fluid temperature readout on the dash.
7. Run-flats. “EMT” molded on the sidewalls, a working LOW/FLAT TIRE light (it comes on below 25 psi, says the manual), recent date codes, and a seller who knows what was done about the sensors.
8. F45 cars. The ride-control knob on the console should change the ride. It’s a rare system: make it prove itself before you pay for it.
9. The roof. The roof panel’s bond to its frame, its seals, and body shake with it off. On a convertible, work the top and every latch.
10. Suspension. At this age the original bushings and shocks are tired; one 2022 Collector Edition buyer put the refresh at about $700 in parts (CorvetteForum).
11. An inspection by a shop that knows C4s, and the rest of the C4 checklist.

What’s a 1996 Corvette worth? It depends on which 1996, more than for any other C4 year. From January 1 to October 20, 2026, Bring a Trailer (opens in new tab) recorded these sales of cars titled as 1996s, by this site’s count of sold prices without the buyer’s fee, engine swaps left out:

Regular coupes sold for a median $16,375 and convertibles $21,500. The six LT4 Collector Editions brought a median $20,000 and the other four, LT1 or with the engine unstated, $14,400; one LT1 coupe sold twice in July and is counted once. Seven of the eight Grand Sports were coupes: the high, $88,500, had 52 miles; the low, $22,500, had headers, a catless exhaust and lowered suspension. Two more were bid to $31,000 and $26,550 without selling.

Against 2025, Grand Sports are down (a $42,695 median on 10 sales) and regular cars up ($14,500 on 15). Samples this small are market color, not a valuation.

Hagerty, values published October 1, 2026 (1996 valuation page (opens in new tab)):

That October release lowered every 1996 value from July: the Grand Sports by about 14 percent (the coupe’s #2 from $57,100), the rest by about 4 to 5 percent. Hagerty lists no Collector Edition LT4 and adds about $500 to a coupe for a glass roof or the Z51 package. Those are dated values, not a forecast.

classic.com, October 12, 2026: market benchmarks of $17,067 for the Collector Edition, $36,492 for the Grand Sport coupe and $43,808 for the Grand Sport convertible.

Every measure puts a Grand Sport at about twice a regular car or more, and an LT4 a few thousand over an LT1, so a blended “1996 average” (30 Bring a Trailer results, $19,375) tells a buyer nothing.

The 1996 to own is an LT4 six-speed coupe whose VIN and label agree with its ad and whose folder shows water pump and Opti-Spark work. It’s the most powerful small-block C4, the last word of a 13-year run, with the big brakes and the vented distributor, and Hagerty puts it only a few thousand over an LT1. Of course you’ll want the extra 30 hp. If your weekends end at an autocross, hunt down a Z51 car.

The LT1 automatic is the budget path and most of what’s for sale, at a median under $14,000 on Bring a Trailer in 2026: same car, less engine, and the better base for a build.

A Collector Edition makes sense when it costs about what a regular car does, which on 2026’s sales it often did; take the LT4 one if you can. Pay a Grand Sport price only for a Grand Sport with the serial and Z16 on the label, and remember the coupe’s real gain over an LT4 is rubber and flares. The stripe is for the people watching.

If the budget reaches further, drive a 1997 C5 and its LS1 before deciding; the best Corvette years guide lines up every generation. Park a 1996 for the winter on a battery maintainer, and the rest of the year drive it like the last C4, because it is.
