C4 Corvette ZR-1 buyer's guide (1990–1995): the LT5, the power key and what to pay

RPO ZR1, the Special Performance Package, changed far more than the engine. Per GM’s Heritage Center kits:

• Engine. The LT5, a 5.7-liter four-cam 32-valve V8, 375 hp at launch. The 2019 C7 (2014–2019) ZR1 reused the LT5 name for a different engine, a supercharged 6.2-liter pushrod V8.
• Gearbox. A ZF six-speed manual was the only transmission, and the ZR-1 came only as a coupe.
• Body. Its own doors, rear quarters, rockers, rear fascia and rear upper panel: a body 3 in wider from the doors rearward, in GM’s 1995 words.
• Wheels and tires. 17 x 9.5 in fronts and 17 x 11 in rears on P315/35ZR17 tires, per Corvette Action Center; non-directional five-spoke wheels from 1994.
• Brakes and steering. 13 in front rotors (12 in on a 1990 base coupe) and 1.96 turns lock to lock, against 2.36.
• Equipment. Power leather sport seats, FX3 Selective Ride, a Delco-Bose CD stereo, a low tire pressure warning and a solar-control windshield, plus electronic climate control from 1992.
• Weight. About 3,479 lb in 1990, against 3,255 lb for a base coupe.

In 1990 the package cost $27,016 on top of a $31,979 coupe: $58,995 in all, close to double.

GM’s 1995 kit says the LT5 was designed and developed by GM’s Group Lotus division in Hethel, England, and built under contract by Mercury Marine in Stillwater, Oklahoma. A Corvette Black Book page in GM’s 1990 kit adds that Chevrolet service departments sent LT5s back to Mercury Marine for certain repairs.

It shares the L98’s V8 layout and 4.4 in bore spacing and little else: an aluminum block and heads, Nikasil-coated aluminum liners (per Corvette Action Center), a 3.90 x 3.66 in bore and stroke, 11.0:1 compression, chain-driven cams and direct-fire ignition. Each cylinder has two intake ports and two injectors, a primary and a secondary. Below half throttle or 3,000 rpm the engine breathes through the primaries only, “in effect, on three valves per cylinder,” GM wrote.

The power key. On a 1993–1995, the key turns to FULL and springs back to center (1993 manual), and a light near the switch shows full power is on. On a 1990, says Marc Haibeck, an Illinois LT5 specialist who sells ZR-1 service and parts, the key turns to a Full Power position, and the secondaries won’t work unless the Full Power light comes on. GM’s 1993–1995 manuals allow full power only with coolant and oil between 68°F (20°C) and 302°F (150°C), more than ten volts and no SERVICE ENGINE SOON light. The setting can change at up to 4,000 rpm and drops back to NORMAL whenever the ignition goes off (1995 manual).

What NORMAL costs depends on the year. GM’s 1995 kit, describing the 405 hp engine, puts NORMAL at approximately 210 hp. No GM figure turned up for the 375 hp engine: Car and Driver estimated in 1989 that the key cut about 150 hp, and in 1990 about a third. The magazine called it the “kiddie key”; owners call it the valet key. Lose it and the car stays in NORMAL, and nobody buys a ZR-1 to drive it there.

The table draws on GM’s kits and owner’s manuals, plus Corvette Action Center (wheel sizes, early redline) and Car and Driver (front tires, the 7,000 rpm tach). GM’s 1995 specification chart gives the 7,200 rpm redline; no 1990–1992 GM manual is in this site’s library to confirm it for early cars.

How much HP does a C4 ZR-1 make? 375 hp and 370 lb-ft for 1990–1992; 405 hp at 5,800 rpm and 385 lb-ft at 5,200 for 1993–1995. The Black Book page in GM’s 1993 kit credits the gain to cylinder head and valvetrain changes, and the year also brought four-bolt mains, platinum-tipped plugs and a Mobil 1 requirement. Corvette powertrain manager Jim Minneker told Car and Driver in 1993 that 20 hp came from a polished, opened-up plenum and runners, port matching and three-angle valve seats, and 10 hp from less exhaust backpressure.

How fast. GM published no 0–60 time or top speed of its own. Four of Car and Driver’s tests:

That’s 0–60 mph in 4.6 s in April 1990 for a production car, and 179 mph for the 405 hp car. Stops from 70 mph took 159–170 ft. The 175.885 mph that a privateer team’s modified ZR-1s averaged for 24 hours at Fort Stockton, Texas, in 1990 is a world record (Corvette Action Center lists it), not a production top speed.

The counts are Corvette Action Center’s. The 1990 and 1993 figures also appear on Corvette Black Book pages GM reproduced in its kits, and the ZR-1 Net Registry, a non-profit owners’ club, agrees from 1991 on; no GM document read for this guide counts the other four years. The 1991 and 1994–1995 option prices are Corvette Action Center’s alone. The last column is this site’s arithmetic, before destination; it matches Hagerty’s MSRP for 1990, 1991, 1993 and 1995, and GM’s 1994 sheet said $67,993 with destination.

The 1990 count is disputed. The registry’s color chart adds up to 3,032 for 1990 (6,922 in all), and so does Hagerty’s 1990 valuation page. The Black Book page in GM’s 1990 kit runs the ZR-1 VINs to serial 803049 and lists 3,049, and Corvette Action Center’s production page (opens in new tab) agrees. This guide uses 3,049 and 6,939, the total Hagerty and classic.com also give.

About 100 1989 ZR-1s were built for evaluation, testing, media previews and photography, and none were released for public sale, per the Black Book page in GM’s 1989 kit. One pre-production car was bid to $84,500 on Bring a Trailer in April 2026 without selling. Demand ran hot at launch: in early 1990, Car and Driver reported, a Chicago dealer advertised a new ZR-1 at $112,500, nearly double its list price.

1990. 3,049 built, the most of any year, and the only year the convex rear fascia and square taillamps set a ZR-1 apart. Early cars had one LT5-only safety recall and two campaigns shared with early L98 cars (see Recalls, complaints and GM bulletins).

1991. GM gave every other Corvette a “ZR-1 look-alike” rear fascia and taillamps, with the high-mounted stop lamp in the fascia (1991 kit). 2,044 built.

1992. “ZR-1” emblems above the side gills, and electronic climate control in the package. Traction control and Goodyear GS-C tires became standard on every Corvette. 502 built.

1993. 405 hp (1993 kit), and the 40th Anniversary package, which Car and Driver reported cost nothing extra on a ZR-1. Corvette Action Center lists the injectors as “commonized” for 1993–1995 (LT5 weak points explains why that matters). 448 built, the rate that held to the end.

1994. Non-directional five-spoke wheels standard on the ZR-1 (1994 kit), and a passenger airbag and leather seats on every Corvette.

1995. GM’s final year for the ZR-1, with the angled gill panels every 1995 Corvette got.

Is there a C4 Corvette ZR-1? Yes: 1990–1995, coupe only, 6,939 built. How to tell if a C4 is a ZR-1? Start with the numbers, not the badges.

• The VIN. GM’s 1990 Vehicle Identification Chart makes the 5th character Z for the “Corvette Special Performance Coupe (ZR1)” (Y on other Corvettes) and the 8th J for the LT5. ZR-1 serial numbers start at 800001. Corvette Action Center lists each year’s range, from L5800001–L5803049 for 1990 to S5800001–S5800448 for 1995.

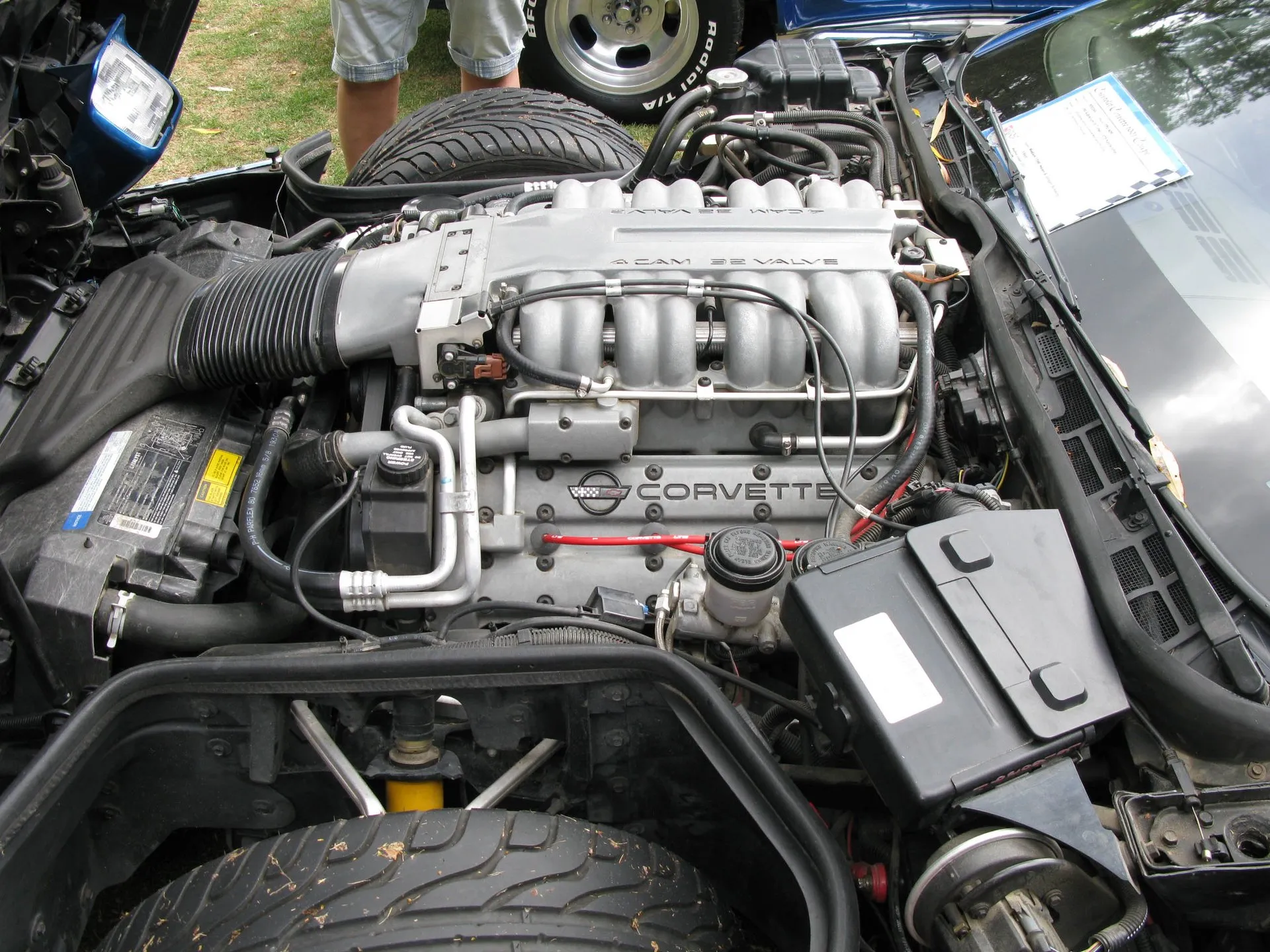

• The engine. A VIN stamp on the lower right rear of the crankcase (GM service manual page), and a plenum lettered “4 CAM 32 VALVE” (photo in The LT5 engine and the power key).
• The option label. GM’s Service Parts Identification label, inside the center console lid, should list ZR1 and LT5.
• Inside. A six-speed coupe with the ENG. POWER switch on the console.

GM’s 1995 kit lists five exterior features that mark a ZR-1. GM wrote them for 1995, so mind the years:

1. Three “ZR-1” emblems, on the rear fascia and above each gill behind the front wheels. The gill emblems start in 1992.

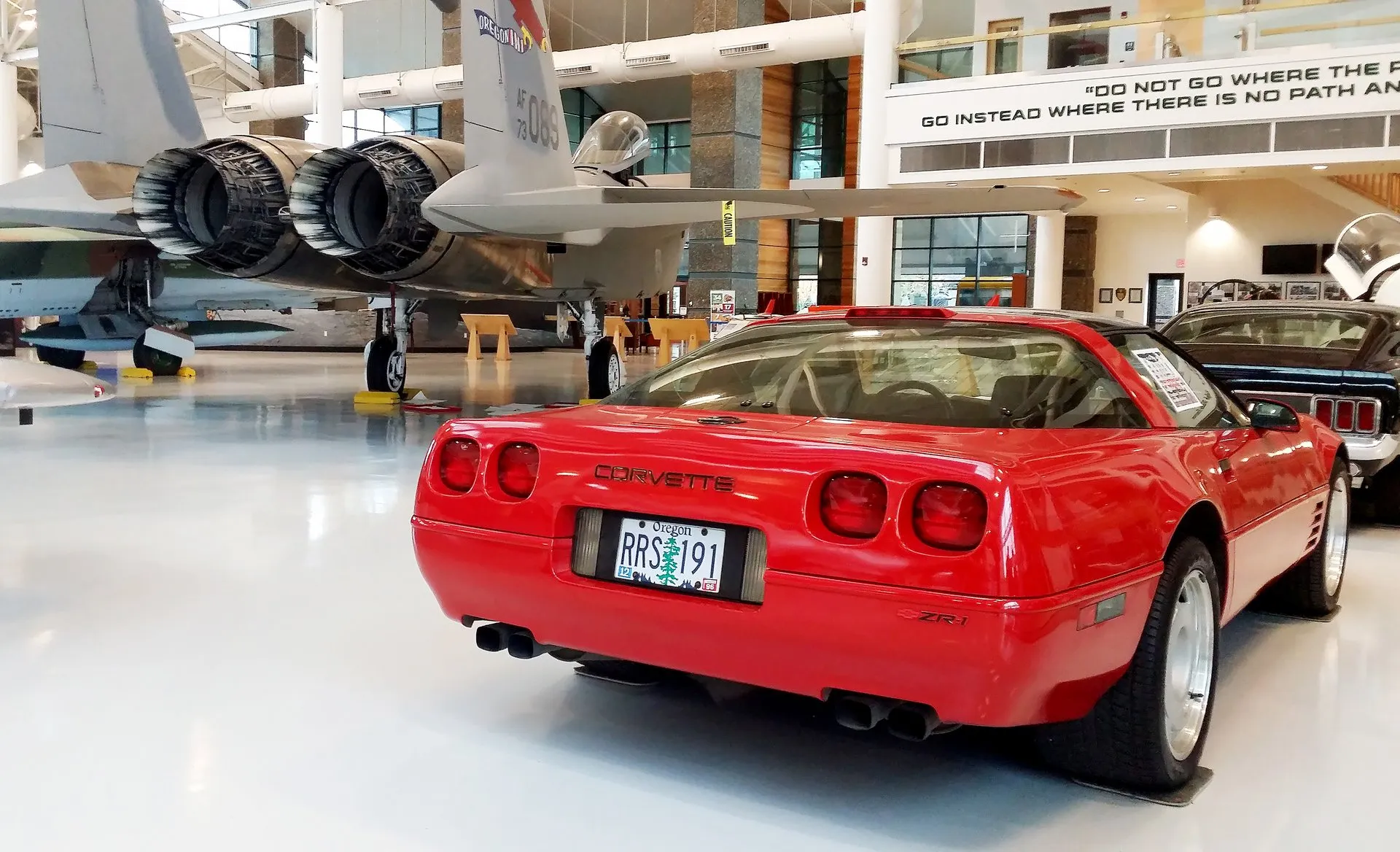

2. The high-mounted stop lamp on the rear hatch glass, where other Corvettes have it in the rear fascia. That’s a tell from 1991, when base cars got the fascia lamp; on a 1990, the rear shape does the job.
3. A body 3 in wider from the doors rearward.
4. Raised “Corvette” letters on the rear fascia, recessed on the 1995 LT1 car. This guide didn’t check them against 1991–1994 base cars.

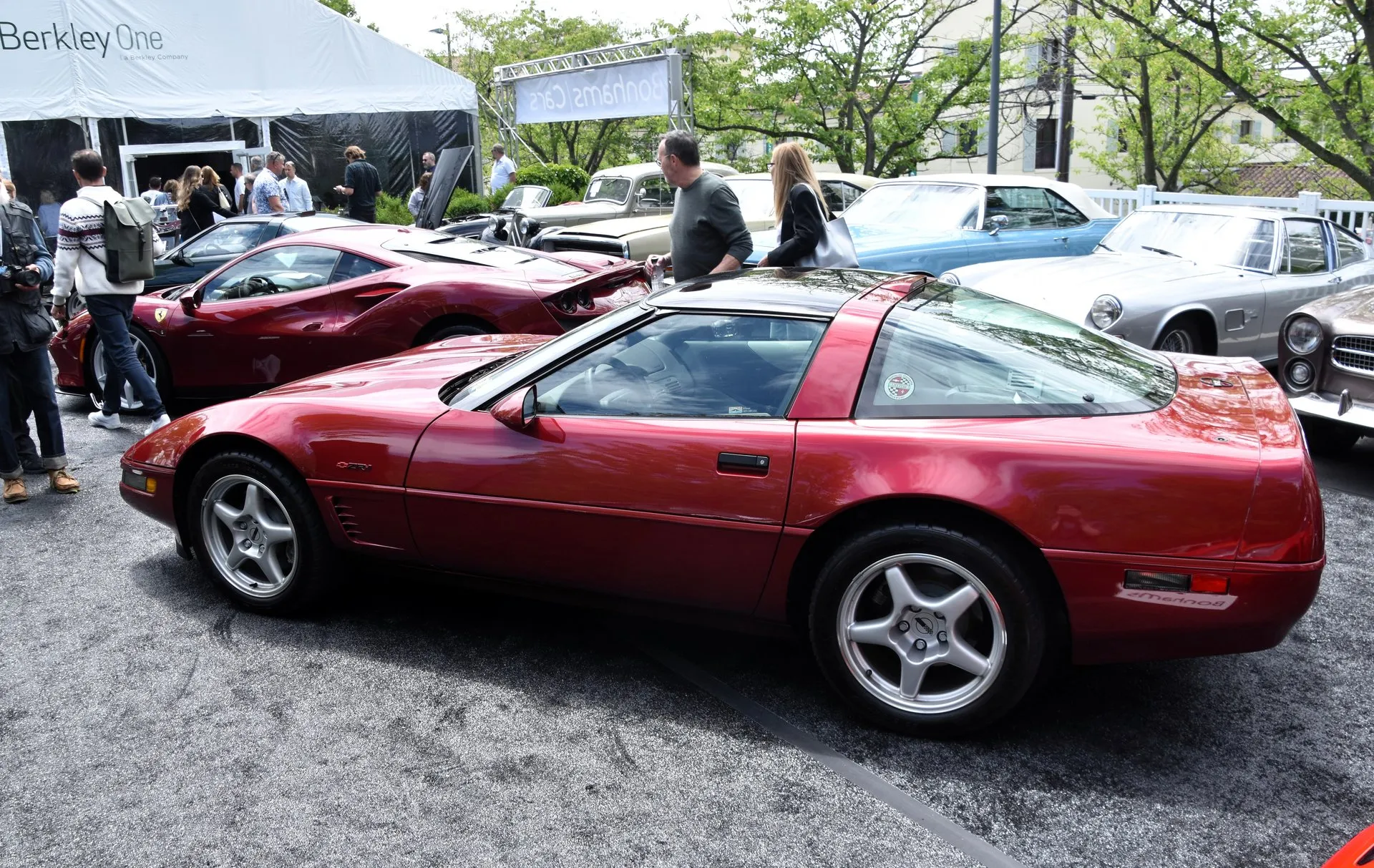

5. Wider tires and five-spoke wheels. Five-spokes from 1994; 17 x 11 in rears every year.

Emblems and a 1991-on rear fascia bolt onto any C4. The VIN, the label and the engine don’t.

Recalls. One belongs to the ZR-1 alone: 90V008000 (opens in new tab), for 213 early 1990 ZR-1s whose fuel line ends had the wrong flare and could crack and leak fuel, possibly causing an engine compartment fire. GM’s campaign 90-C-10 lists VINs L5800001 to L5800213. Two non-safety campaigns, 90C07 (dash wiring that could short) and 90-C-09 (parking brake), covered early 1990 L98 and LT5 cars alike. Seat belt recall 91V143000 covers 1990 and 1991 ZR-1s, and the C4 guide explains why a free fix isn’t guaranteed. No GM recall covers a 1992–1995 ZR-1.

Owner complaints. NHTSA’s file doesn’t separate the ZR-1, and it starts in September 1994, so nothing from when 1990–1993 ZR-1s were new is in it. By this site’s VIN count, 7 of the 154 complaints against 1990–1995 Corvettes (opens in new tab) are ZR-1s, all 1990 and 1991 cars: an airbag that deployed for no known reason at 70 mph (filed 2015), two owners who couldn’t get the right seat belt recall parts, a punctured brake hose, a brake line corroded through by battery acid, hissing Bose amplifiers and out-of-round aftermarket tires. A probable eighth describes leaking oil-cooler lines. Thirty-three complaints lack a usable VIN, so the count may be low. None mentions the LT5, its injectors, secondaries or chains, or the power key.

GM bulletins (from Corvette Action Center’s transcriptions; NHTSA’s bulletin files start in 1995):

• Engine service. Bulletin 92-228-6 (opens in new tab) (June 1992) confined internal LT5 repairs to a specialized LT5 Repair Center, “because production volumes are limited and engine reliability is proven.” Dealers handled the outside of the engine.
• Radiator hoses. 90-308-6B (1990): hoses on cars before VIN L5800913 could leak below 20°F; six-hose kit GM 10157951 (OEM).
• No start. 92-307-6 (1992): engine washing can block the drain in the vee where the starter sits and corrode it; new starter GM 10455704 (OEM). GM’s 1995 manual says not to aim water into the vee.
• Squeal with the clutch in. 92-230-6 (1992): a grooved crankshaft bushing, GM 10125896 (OEM).
• Early-car fixes. 47-65-03 (1994) recalibrated 1990–1991 cars for hard hot starts and high idle, and 92-214A-7B (1992) readjusted the throttle cable on early 1992s that might not reach full throttle.

This guide found no GM recall, bulletin or extended coverage for LT5 injectors, chains or guides, or the secondary ports.

Owners in CorvetteForum’s ZR-1 threads, the ZR-1 Net Registry and Marc Haibeck of Haibeck Automotive Technology in Addison, Illinois, an LT5 specialist who sells the service, parts and upgrades he writes about, tell the same story: a tough engine with weak points around it. One owner called it “bulletproof if taken care of” (2022). None of this comes from GM unless it says so.

• 1990–1992 injectors. Haibeck says every factory 1990–1992 injector is damaged after three to five years on ethanol-blended fuel: rough running while warming up, then misfires. He has never seen that failure on a 1993-or-later LT5, and lists all 16 replaced (opens in new tab) for $2,219 (October 2026). Owners in four CorvetteForum threads from 2011 to 2022 agree.
• The secondary ports. At key-on, the secondary vacuum pump under the passenger-side headlight should run a few seconds and stop. If it runs constantly or cycles, there’s a vacuum leak, usually under the plenum. The registry says the power switch contacts can spread apart on 1990–1992 cars (Haibeck names 1990), and then the secondaries won’t open.
• Cars that sit. Owners say a stored LT5 gums up its injectors, since only half of them fire in NORMAL, and the registry warns that fuel pumps rust on a low tank. Haibeck publishes a wake-up procedure, and one owner in a 2023 thread warns that neglect can mean a rebuild even at 40,000 miles.
• Start-up rattle. A rap of about a second on a cold start, gone once oil pressure builds, is common: Haibeck traces it to the right secondary chain guide, on about 25 percent of engines, and the registry says it doesn’t seem to cause problems. Rarer is a worn-away upper chain-guide facing; Haibeck reported seven in a year in 2008, one with a broken chain. The right one is visible under the oil filler cap, and GM’s part (GM 10110933, OEM, as he reports it) is discontinued. New tensioners are expensive and hard to find.
• Oil. Owners list leaks at the oil pan bolts, cam covers, oil-cooler lines and header studs. Haibeck’s own 1993 used about a quart every 600 miles driven hard to 7,000 rpm and almost none on highway trips, and he notes the Nikasil liners can’t be honed.
• Coolant. GM specifies coolant to its standard 1825M (1995 manual). Haibeck reports more head gasket failures with organic-acid coolant such as Dex-Cool, and owners warn against it: their observation, not GM’s.
• Clutch and gearbox. Haibeck says the original Valeo clutch has been discontinued for about 15 years and about 25 percent of ZR-1 pilot bearings fail by spinning in the crankshaft. Owners call the dual-mass flywheel costly and rate damaged ZF synchros a reason to walk away. GM’s bulletin 477201 addressed high shift effort after a cold soak on 1995 manual Corvettes.
• Everything else is ordinary C4 trouble: Bose amplifiers and CD players, Selective Ride, headlight motor bushings, weatherstrips and, on a 1990, the airbag lamp. The C4 guide covers the last three. The registry adds that nearly every ZR-1 windshield shows some distortion.

From GM’s documents, the shopper’s guide of LT5 specialist Marc Haibeck (who sells LT5 service), the registry’s buyer’s guide (opens in new tab) and owner threads:

1. The VIN, engine stamp and option label (How to tell a real ZR-1).
2. Records: injectors on a 1990–1992, the coolant used, clutch work and, on a 1990 with a VIN ending 5800213 or lower, the fuel line recall.
3. The power key. It should come with the car. With the engine warm, select FULL and the light should come on.
4. Key-on, engine off. Every warning lamp lights for a bulb check, and the secondary vacuum pump runs a few seconds and stops.
5. A cold start. A rap of about a second is common. Then look under the oil filler cap: Haibeck says the top edge of the right upper chain-guide facing’s retainer tab should be visible there.
6. Warm idle at about 650 rpm (Haibeck), with no surging.
7. A misfire test, Haibeck’s: in NORMAL, fourth gear at 30 mph, full throttle. The engine lugs, but it should pull smoothly; roughness points to an injector or ignition fault.
8. A second-gear pull, also Haibeck’s, only where it’s safe and legal: in FULL, 30 to 65 mph at full throttle should take a healthy LT5 to 7,000 rpm in about four seconds. One that won’t rev quickly past 5,500 rpm has secondaries that aren’t opening.
9. Leaks at the oil pan, oil-cooler lines, header studs and water pump. Check the oil cold, as GM says, or two hours after shutdown.
10. Clutch and gearbox. Haibeck says engagement 1 in from the top means the clutch is about 90 percent worn. No grinding into gear.
11. Tires over five years old (Haibeck). The rears are P315/35ZR17.
12. How it was stored, for how long and on how much fuel.
13. An inspection by an LT5 specialist, with a compression test, which one owner runs first.

How much does a C4 ZR-1 cost? Bring a Trailer (opens in new tab) sold 49 from January 1 to October 17, 2026, for $14,250–$85,000, a median of $33,750, by this site’s count; 15 more didn’t sell. Low-mile cars pull the top end up.

The top sale was a 7-mile 1990 at $85,000 in September. Driven cars brought $27,500–$33,000: a 47,000-mile 1990 at $32,750, 1992s with 45,000 miles ($27,500 and $31,750) and 40,000 miles ($33,000), and a 33,000-mile 1995 at $31,500. The lowest price, $14,250, came up three times.

Other measures. classic.com’s ZR-1 market benchmark was $37,433 on October 12, 2026, down from $37,614 in mid-September (the figure on the C4 guide). Hagerty’s #3 (“good”) values are older: $20,800–$31,200 across the model years captured, on value graphs dated July 2023 to October 2025, with the 1995 highest. In 2019 Hagerty called the ZR-1 “the bargain buy of super C4s.”

What values did. Bring a Trailer’s yearly median went from about $21,000–22,000 in 2017–2019 to $36,000–38,250 in 2021–2023, then $31,994 in 2024 and $35,250 in 2025. That’s history, not a forecast.

Fuel and fluids. Premium only: 91 octane or higher. GM specifies oil meeting its standard GM4718M (Mobil 1 from the factory, required from 1993), changed every 7,500 miles or 12 months, and allows 10W-30 only as an LT5 top-up (1995 manual). Capacities disagree (8.6 qt with filter in the 1995 manual, 9.0 qt on GM’s 1995 chart), so fill by the manual and check the dipstick cold. Coolant to GM 1825M; wheel nuts take 100 lb-ft (140 N·m).

Specialist prices. Haibeck’s own list, October 2026: an oil change at $239; a full fluid service (oil, brake fluid, coolant, clutch hydraulics, gearbox, axle and power steering) at $879 for a 1990 or $905 for a 1991–1995; and the early-injector job at $2,219. No sourced insurance figure turned up, so get quotes.

Parts. Internal LT5 work, once the job of GM’s LT5 Repair Center, now falls to independent specialists. The registry says LT5 parts are generally available new or reproduced, but Haibeck reports GM’s clutch and upper chain-guide facing discontinued, and one owner calls the driver information center hard to find.

Living with it. GM’s 1995 manual warns that automatic car washes may not clear the ZR-1’s wide rear tires. A ZR-1 that sits belongs on a battery maintainer, and the battery guide covers the C4.

The pick is a 1993–1995 with records: 405 hp, four-bolt mains and injectors Haibeck has never seen fail the early way, plus five-spoke wheels on a 1994 or 1995. On 2026’s small samples, those two years brought medians of $43,000 and $46,001.

The budget path is a driven 1990–1992 around $30,000 with the injectors already done, or about $2,200 set aside for them. The 1990 is the easiest to find: 23 of 2026’s 49 sales.

Pay for records, not just low miles. Walk away from a car that sat without a documented wake-up, secondaries that won’t open, or a VIN and engine that don’t match.

Get it right and you own a four-cam V8 designed at Lotus, in a car that beat a Ferrari 348ts in a 1990 magazine comparison, for a little over half its 1990 sticker. Turn the key to FULL and wait for the light. America’s sports car has rarely been this exotic under the hood, or this attainable. GM matched its 405 hp with a pushrod V8 in the 2002 C5 (1997–2004) Z06, and the ZR1 name came back on the C6 (2005–2013), C7 and C8 (2020–present) ZR1s.
